MFX 1041 – nity otwarte Stal kołnierz standardowy
Cena na zapytanie
Dostępne w wielu wymiarach i wykonaniach (tabela poniżej). Cena zależy od rozmiaru i ilości – zapytaj o ofertę, odpowiemy w 1 dzień roboczy.
- Kategoria
- Nasza oferta
- Doradztwo techniczne przy doborze
- Faktura VAT, płatność przelewem dla firm
- Serwis narzędzi NORSTEEL w Świdnicy

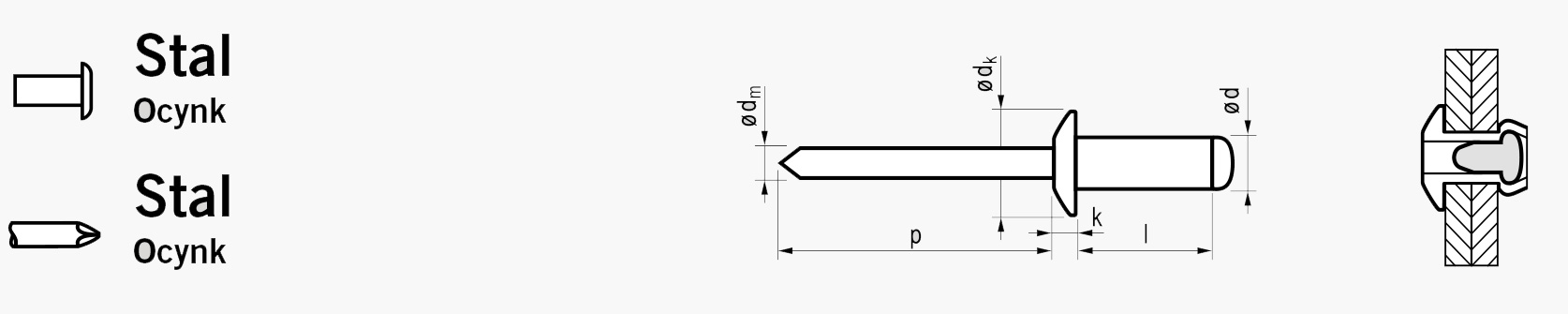

Wymiary i wykonania
| ϕd | I [+1,-0.2] |
 |
Indeks nr. | ϕDk | k | ϕDm | p |  |
 |
| mm | mm | mm | mm | mm | mm | mm | N | N | |
| 3.0 [+0.08, -0.10] ϕ 3.1 |
6.0 | 1.5 – 3.0 | 10413006 | 6.5 [+0/-0.7] |
0.8 [+/-0.2] |
~1.90 | ⩾ 27 | 1.125 | 915 |
| 8.0 | 3.0 – 5.0 | 10413008 | |||||||
| 10.0 | 5.0 – 7.0 | 10413010 | |||||||
| 12.0 | 7.0 – 9.0 | 10413012 | |||||||
| 14.0 | 9.0 – 11.0 | 10413014 | |||||||
| 3.2 [+0.08, -0.10] ϕ 3.3 |
6.0 | 1.5 – 3.0 | 10413206 | 6.5 [+0/-0.7] |
0.8 [+/-0.2] |
~2.00 | ⩾ 27 | 1.285 | 1.060 |
| 8.0 | 3.0 – 5.0 | 10413208 | |||||||
| 10.0 | 5.0 – 7.0 | 10413210 | |||||||
| 12.0 | 7.0 – 9.0 | 10413212 | |||||||
| 14.0 | 9.0 – 11.0 | 10413214 | |||||||
| 16.0 | 11.0 – 13.0 | 10413216 | |||||||
| 4.0 [+0.08, -0.15] ϕ 4.1 |
6.0 | 1.5 – 2.5 | 10414006 | 8.0 [+0/-1.0] |
1.0 [+/-0.3] |
~2.50 | ⩾ 27 | 1.990 | 1.550 |
| 8.0 | 2.5 – 4.5 | 10414008 | |||||||
| 10.0 | 4.5 – 6.5 | 10414010 | |||||||
| 12.0 | 6.5 – 8.5 | 10414012 | |||||||
| 14.0 | 8.5 – 10.5 | 10414014 | |||||||
| 16.0 | 10.5 – 12.5 | 10414016 | |||||||
| 18.0 | 12.5 – 14.5 | 10414018 | |||||||
| 20.0 | 14.5 – 16.5 | 10414020 | |||||||
| 4.8 [+0.08, -0.15] ϕ 4.9 |
6.0 | 1.0 – 2.5 | 10414806 | 9.5 [+0/-1.0] |
1.1 [+/-0.3] |
~2.90 | ⩾ 27 | 2.920 | 2.300 |
| 8.0 | 2.5 – 4.5 | 10414808 | |||||||
| 10.0 | 4.5 – 6.0 | 10414810 | |||||||
| 12.0 | 6.0 – 8.0 | 10414812 | |||||||
| 14.0 | 8.0 – 10.0 | 10414814 | |||||||
| 16.0 | 10.0 – 11.5 | 10414816 | |||||||
| 18.0 | 11.5 – 13.5 | 10414818 | |||||||
| 20.0 | 13.5 – 15.0 | 10414820 | |||||||
| 22.0 | 15.0 – 17.0 | 10414822 | |||||||
| 25.0 | 17.0 – 20.0 | 10414825 | |||||||
| 28.0 | 20.0 – 23.0 | 10414828 | |||||||
| 30.0 | 23.0 – 26.0 | 10414830 | |||||||
| 5.0 [+0.08, -0.15] ϕ 5.1 |
8.0 | 2.5 – 4.0 | 10415008 | 9.5 [+0/-1.0] |
1.1 [+/-0.3] |
~2.90 | ⩾ 27 | 3.255 | 2.575 |
| 10.0 | 4.0 – 6.0 | 10415010 | |||||||
| 12.0 | 6.0 – 8.0 | 10415012 | |||||||
| 14.0 | 8.0 – 10.0 | 10415014 | |||||||
| 16.0 | 10.0 – 11.5 | 10415016 | |||||||
| 18.0 | 11.5 – 13.5 | 10415018 | |||||||
| 20.0 | 13.5 – 15.0 | 10415020 | |||||||
| 6.0 [+0.08, -0.15] ϕ 6.1 |
12.0 | 3.5 – 6.5 | 10416012 | 12.0 [+/-1.5] |
1.5 [+/-0.4] |
~3.60 | ⩾ 31 | 5.020 | 4.040 |
| 15.0 | 6.5 – 9.5 | 10416015 | |||||||
| 18.0 | 9.5 – 12.5 | 10416018 | |||||||
| 22.0 | 13.5 – 16.5 | 10416022 | |||||||
| 26.0 | 17.5 – 20.5 | 10416026 | |||||||
| 30.0 | 21.5 – 24.5 | 10416030 | |||||||
| 6.4 [+0.08, -0.15] ϕ 6.5 |
12.0 | 3.5 – 6.5 | 10416412 | 13.0 [+/-1.5] |
1.8 [+/-0.4] |
~3.85 | ⩾ 31 | 5.415 | 4.355 |
| 15.0 | 6.5 – 9.5 | 10416415 | |||||||
| 18.0 | 9.5 – 12.5 | 10416418 | |||||||
| 22.0 | 12.5 – 16.5 | 10416422 | |||||||
| 26.0 | 18.5 – 20.5 | 10416426 | |||||||
| 30.0 | 22.5 – 24.5 | 10416430 |
Zapytaj o ofertę: MFX 1041 – nity otwarte Stal kołnierz standardowy
Podaj średnicę, długość, materiał i ilość – przygotujemy ofertę z ceną dla Twojej firmy.
